Roller Type High Speed Al/Pl Blister Packaging Machine

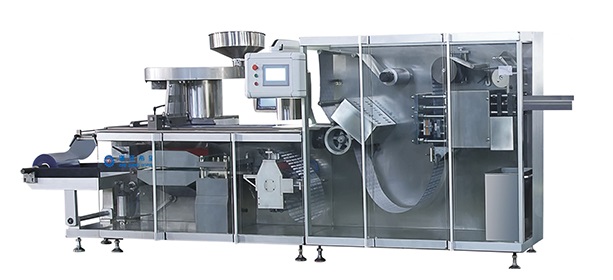

DPH-260 Roller Type High Speed AL/PL Blister Packing Machine
Technical specifications:
| Capacity(punch/time) | 60-200 |
| Range of stroke(mm) | 20-120 |
| Packingmaterial:Pharmacy PVCPTP Alu foil(mm) | (0.2-0.4)*260 |
| (0.02-0.05)*260 | |
| Cleam compressed air | 0.5-0.7Mpa |
| Air consumption(m³/min) | ≥0.5 |
| Power | AC380V 50HZ 18.1KW |
| Water chiller for moulds | 1.5P with 60L/h consumption |
| Dimension(L-W*H)(mm) | 4860*1070*1750 |
| Net weight (kg) | 3000 |

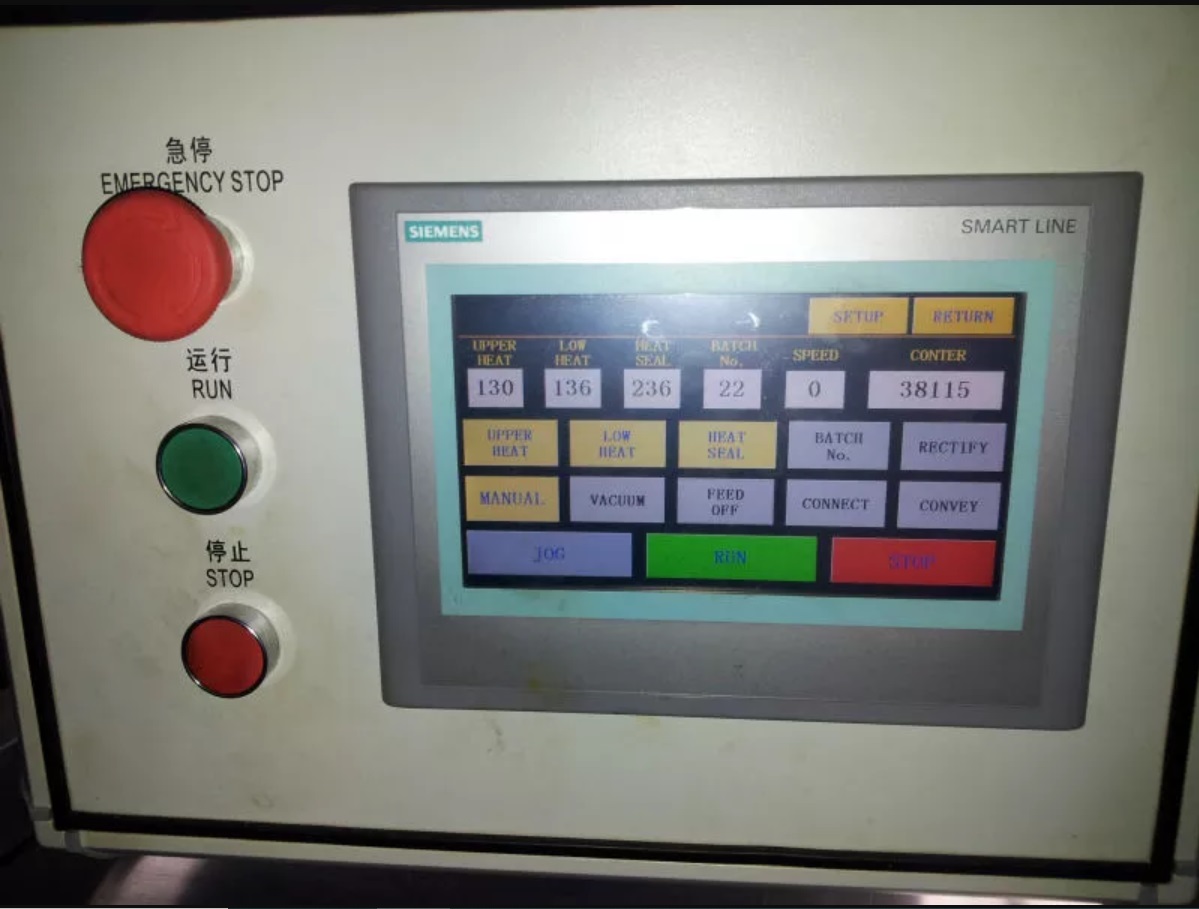

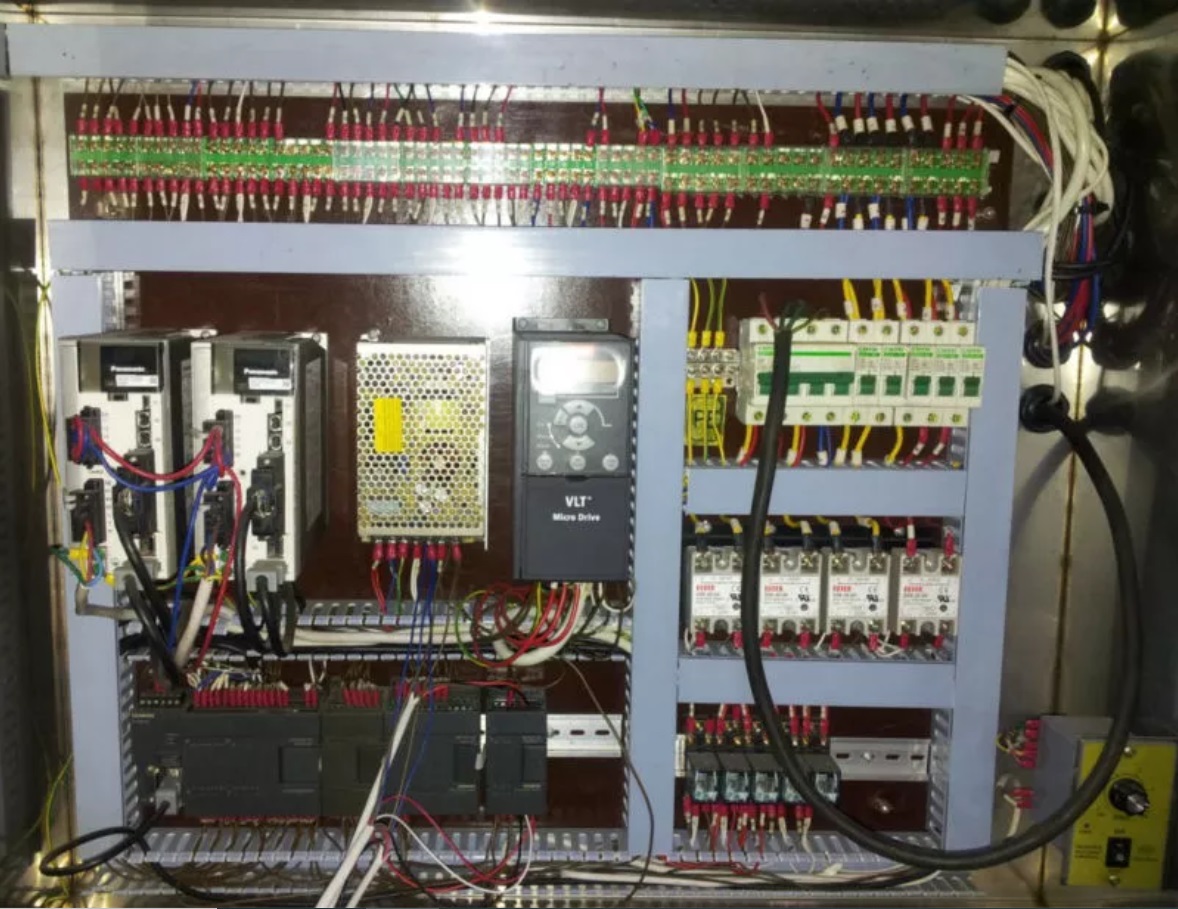

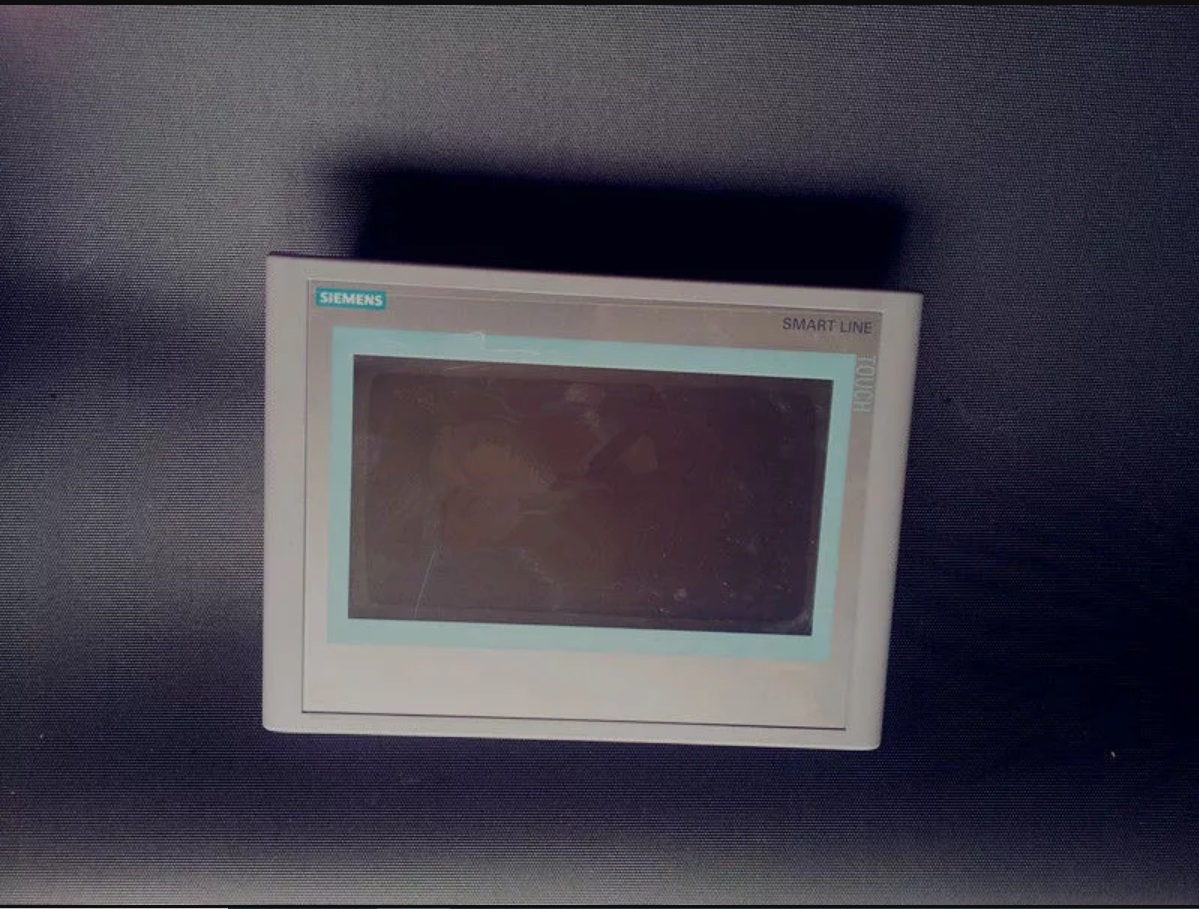

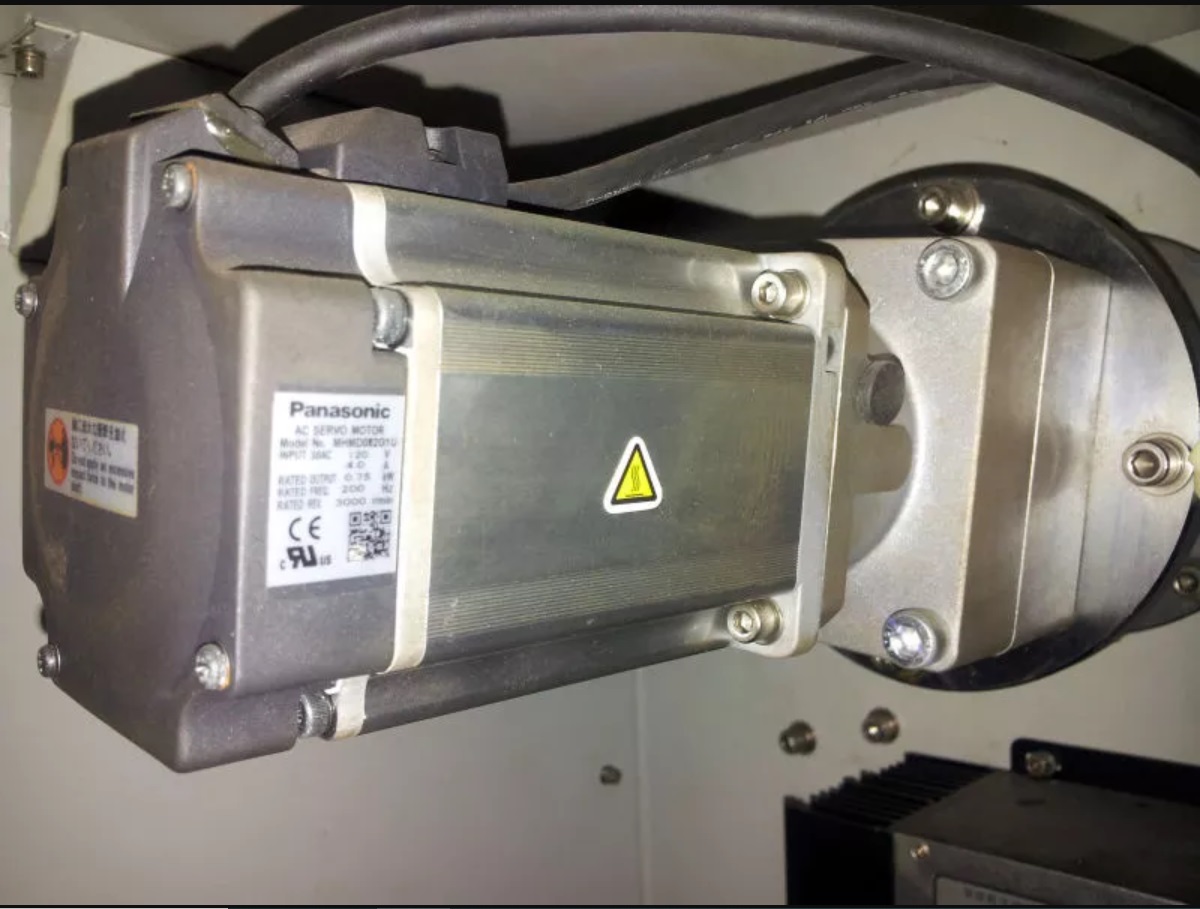

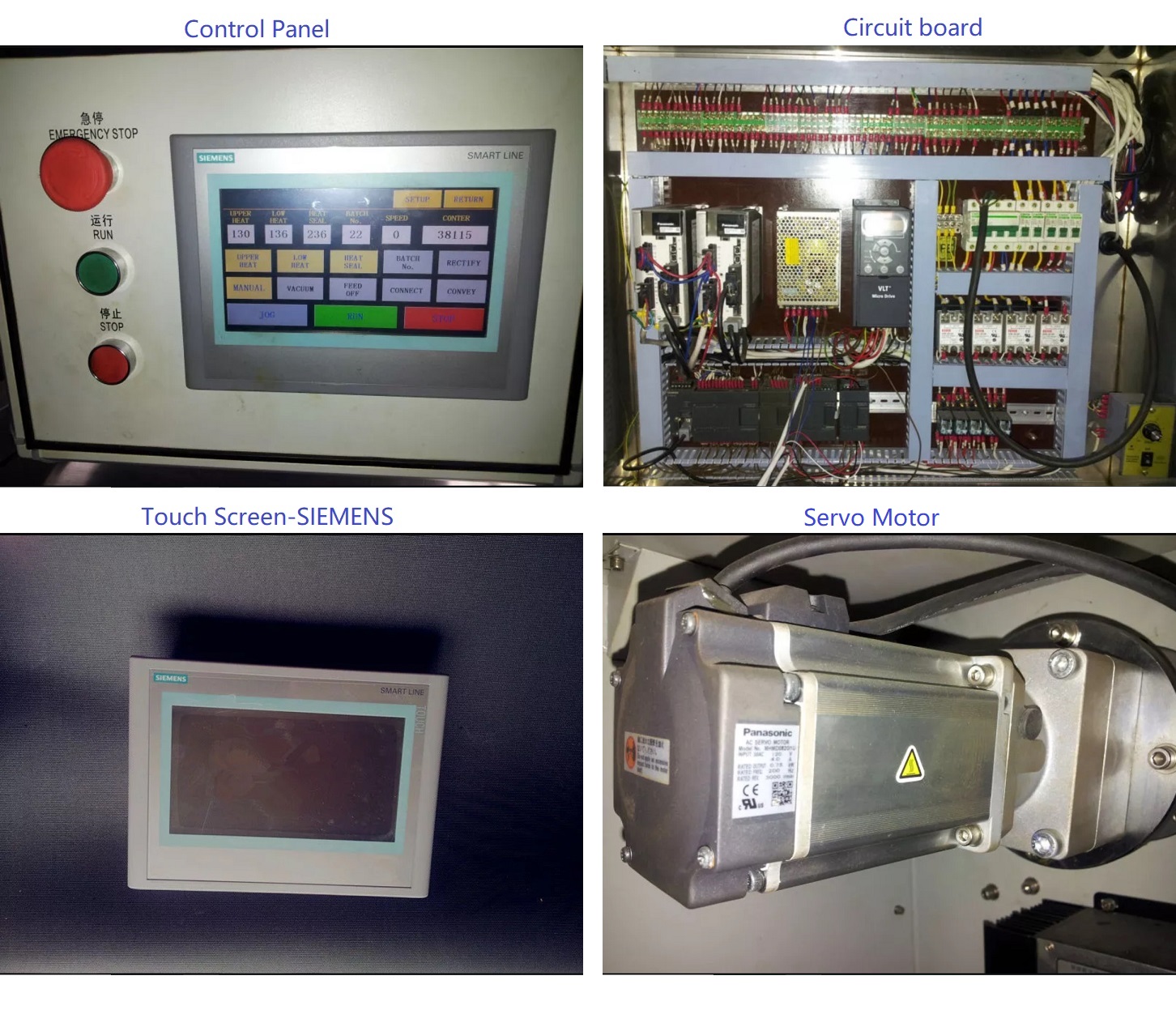

Machine details:

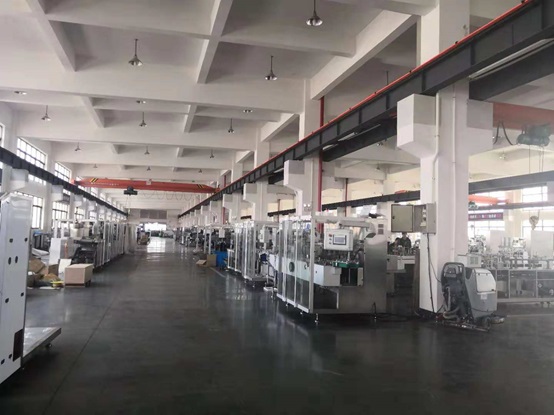

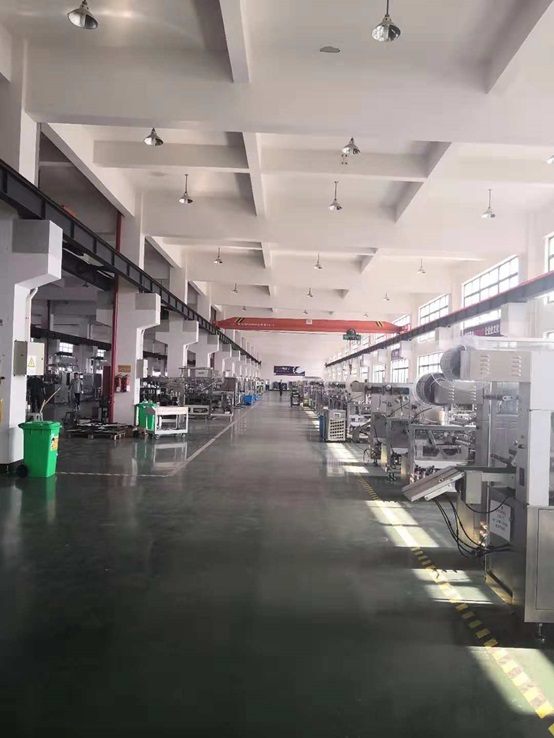

Factory tour:
