Dpp-80 Manufacturing Pharmaceutical Packaging Machine, Blister Packing Machine1. Product ImageDpp-80 Automatic Pharmaceutical Equipment Capsule/Liquid/ Choclate Blister Packing Packaging/Package/Pack Machine

2. Features:
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device  (Omron Sensor) Dpp-80 Manufacturing Pharmaceutical Packing Packaging/Package Pack Machine, Blister Packing Machine for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

3. Technical specifications:

Model DPP-80 DPP-120 DPP-150
Punch frequency 10-33times/min 10-33times/min 10-35times/min
Production capacity 1980plates/hour 2400plates/hour 1200-4200plates/hour( two plates one time)
Max. Forming area & Depth 105×70(standard depth <=15mm), Max. Depth 25mm( As adjusted 125×75(standard depth <=15mm), Max. Depth 25mm( As adjusted 130×100(standard thickness≤15mm) Max. depth 26mm
Standard Stroke range 30-80mm(can be designed as per user’s required) 30-80mm(can be designed as per user’s required) 50-120mm(can be designed as per user’s required)
Standard plate size 80x57mm  (can be designed as per user’s required) 80x57mm  (can be designed as per user’s required) 80x57mm  (can be designed as per user’s required)
Air pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Compressed air required Air compressor≥0.3m3/min Air compressor≥0.3m3/min Air compressor≥0.3m3/min
Total power supply 220V  50Hz  2.4Kw  220V  50Hz 1 phase 2.8Kw  380V  50Hz  3.8Kw
Main motor 0.75Kw 0.75Kw 1.5Kw
PVC hard Film 0.15-0.5*110 (mm) 0.15-0.5*125 (mm) 0.15-0.5*150 (mm)
PTP Aluminum film 0.02-0.035*110 (mm) 0.02-0.035*125 (mm) 0.02-0.035*150 (mm)
Cold stamped aluminum 0.14-0.16  110(mm)
Dialysis Paper 50-100g*110(mm) 50-100g*15(mm) (0.02∽0.035)×150mm
Mould cooling Tap water or Recycling water Tap water or Recycling water Tap water or Recycling water
Overall Dimension 1840x590x1100 (mm)(LxWxH) 1840x590x1100 (mm)(LxWxH) 2315×635×1405mm(L×W×H)
Weight Net 425kg      Gross weight: 475kg Net 415kg      Gross weight: 465kg Net 820kg      Gross weight: 890kg
Noise index <75dBA <75dBA <75dBA

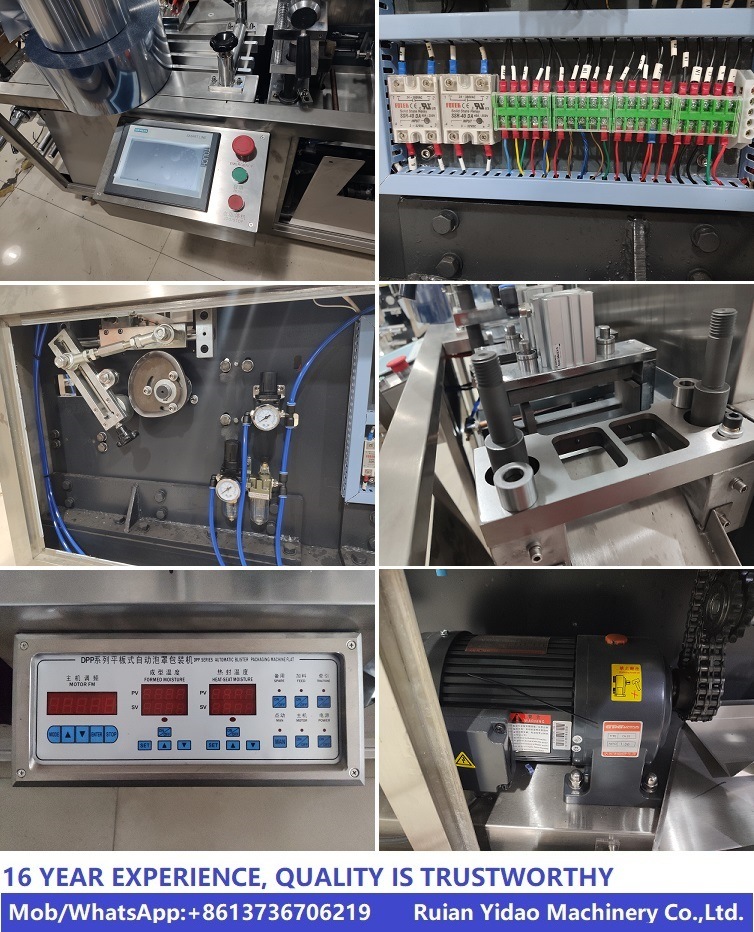

4. Machine details:
Dpp-80 Automatic Pharmaceutical Equipment Capsule/Liquid/ Choclate Blister Packing Packaging/Package/Pack Machine
Option
1. PLC  + Touch
2. Indentation device
3. Ornaic glass cover
4. cursor positioning
5. Machinery forming
6. Recovery device

5. Samples:
Dpp-80 Automatic Pharmaceutical Equipment Capsule/Liquid/ Choclate Blister Packing Packaging/Package/Pack Machine

6. Factory tour:
Dpp-80 Automatic Pharmaceutical Equipment Capsule/Liquid/ Choclate Blister Packing Packaging/Package/Pack Machine

7. Packaging:
Dpp-80 Automatic Pharmaceutical Equipment Capsule/Liquid/ Choclate Blister Packing Packaging/Package/Pack Machine

8. FAQ
1. How do we know the model is suitable for our target capacity?
A: Pls tell us how many blisters do you want to pack in one hour, what are you going to pack, what is the size of blister sheet, then we will design and choose the most cost-effective blister packaging machine for you.
2. Can I pack two kinds or more of different sizes of blisters by one machine?
A: Yes, pls tell us your requests of the size you are going to pack, we will design different mould for you to change.
3. What kind of products can you pack with this machine?
A: we can pack different products, like capsules, tablets, vials, ampoules, candies, electronic products, liquids, and many other products.
