Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

Short Description:


Product Detail

FAQ

Product Tags

DPP-150 Manufacturing Pharmaceutical Packaging Machine, Blister Packing Machine1. Product image
Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

2. Features:
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device  (Omron Sensor) Dpp-80 Manufacturing Pharmaceutical Packing Packaging/Package Pack Machine, Blister Packing Machine for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

3. Technical specifications:

Punches frequency 10-35times/min
Production capacity 1200-4200plates/hour( two plates one time)
Max. forming area and depth 130×100(standard thickness≤15mm) Max. depth 26mm
Stroke range 50-120mm( can be designed as per user’s required)
Standard plate size 80x57mm ( can be designed as per user’s required)
Clean compressed air 0.4∽0.6Mpa
Air compressed capacity ≥0.3m3/min
Total power supply 380V 50HZ 3.8kw
Main power 1.5KW
PVC hard film (0.15∽0.5)×150mm
PTP Aluminum film (0.02∽0.035)×150mm
Dialysis paper (0.02∽0.035)×150mm
Mould cooling Tap water or recycling water
Overall dimension 2315×635×1405mm(L×W×H)
Net Weight 820KG
Gross Weight 890KG
Overall Dimension 2500×800×1780mm(L×W×H)
Noise <75dB

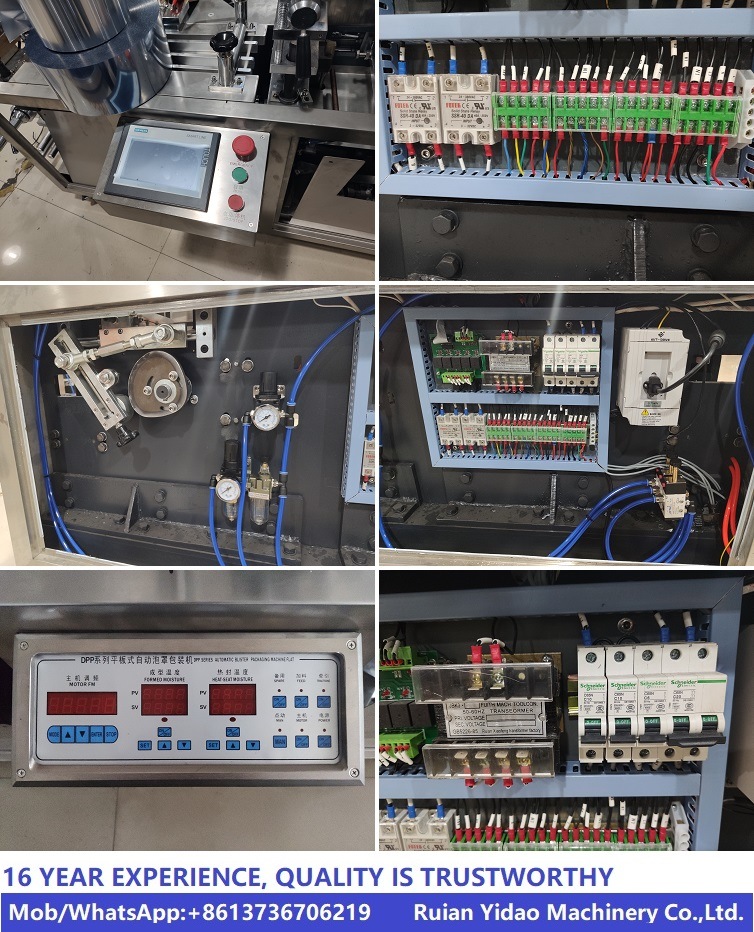

4. Machine details:
Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

Samples:
Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

6. Factory tour:
Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

7. Packaging:
Dpp-150 Automatic Alu PVC Blister Machine for Tablet and Capsule/Alu Alu Pharmaceutical Packing Machine

8. FAQ
1. How do we know the model is suitable for our target capacity?
A: Pls tell us how many blisters do you want to pack in one hour, what are you going to pack, what is the size of blister sheet, then we will design and choose the most cost-effective blister packaging machine for you.
2. Can I pack two kinds or more of different sizes of blisters by one machine?
A: Yes, pls tell us your requests of the size you are going to pack, we will design different mould for you to change.
3. What kind of products can you pack with this machine?
A: we can pack different products, like capsules, tablets, vials, ampoules, candies, electronic products, liquids, and many other products.
