Reliable Supplier Grain filling machine - Kd-260 Automatic Pillow Type Packaging / Packing Machine for Medicine Blister – Yidao Detail:

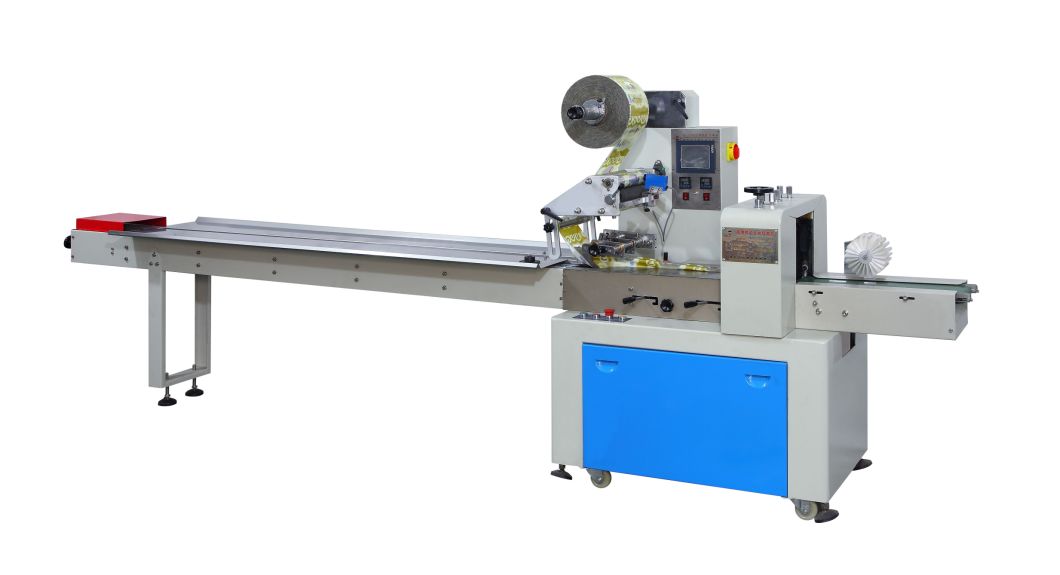

KD-260 Automatic Lower Feeding pillow-type packing machine1. Product image:
Kd-260 Automatic Pillow Type Packaging / Packing Machine for Medicine Blister

2. Scope of application:

Kd-260 Automatic Pillow Type Packaging / Packing Machine for Medicine Blister

3. Features:

Compact structure, stable function and simple operation.
Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.
It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.
Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.
Clean rotation system, more reliableoperation and more convenient maintenance.
All the controlling operates by the software,convenience for function ad-justment and technical up grading.

4. Main Technical Date:

Model	KD-260	KD-260A	KD-260B
Max film width	260mm	240mm	260mm
Max packaging capacity (according to its material to confirm)	40-250 times/min	40-250 bags/min	50-250 times/min
Suitable film thickness	0.03-0.06mm	0.03-0.06mm	0.03-0.06mm
Length of bags	65-330mm	25-220mm	25-220mm
Packaging with	30-110mm	25-100mm	25-100mm
Packaging height	≤55mm	≤55mm	≤45mm
Total power	2.4Kw 220V	2.4Kw 220V	2.7Kw 220V
Overall dimensions(L x W x H)	4000 x 920x1500mm	4000 x 920x1500mm	4100 x 950x1500mm
Weight	500KG	500KG	680KG
Precision	<=5
Type	Horizental	Reverse	Lower feeding
Application	Suitable for biscuits, packaging of all kinds of objects with regular solid state, such as bread , speed wheaten food, moon cake, candy, medicines, daily necessities, hardware, paper carton or the tray , etc.	Apply for material blocks such as betel, olives, candied fruit, gong date, multiple packet soup, solid dispersing materials, small electronic components of irregular objects.	Suitable for soft strip packaging,such as towel, paper tpwel, dried noodles, omelet, banger, sleeve-fish, ice-lolly, candy.

5. Performance And Characteristics

1.Compact structure, stable performance, easy maintenance. The double frequency conversion control, bag length is set is cut, don’t need to adjust empty, one pace reachs the designated position, time-saving membrane uses the Sifang imported frequency converter
2.Touch human-machine interface, convenient and quick parameter setting fault self-diagnosis function, fault shows at a glance.Look the Gao Gan degree of photoelectric tracking,
3.Temperature independent PID control, better suited to a variety of material coated.Positioning stop function, non-stick knives, at no cost

4. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
5. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.6. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
6. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

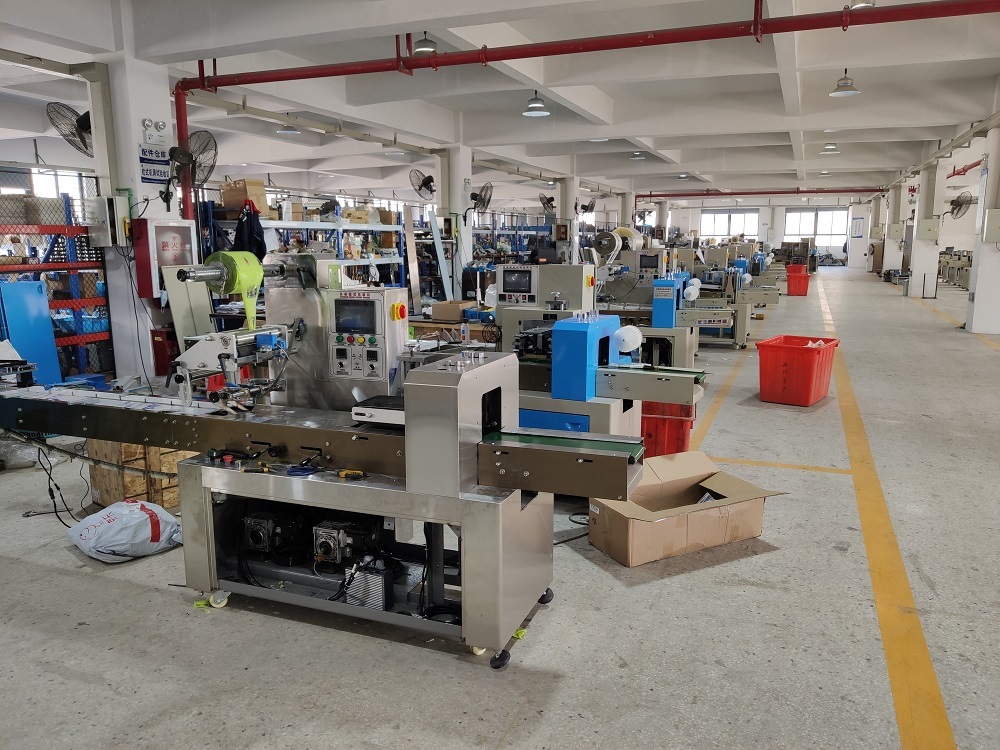

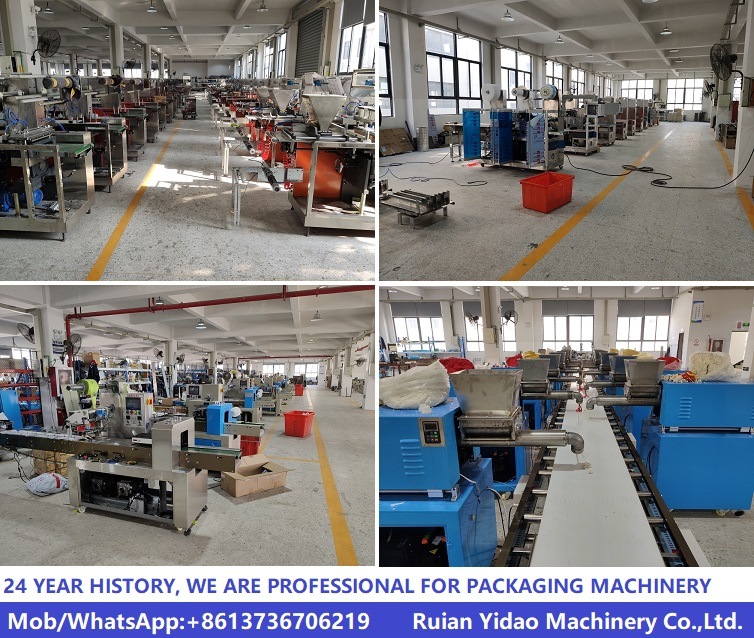

6. Factory tour:
Kd-260 Automatic Pillow Type Packaging / Packing Machine for Medicine Blister

7. RFQ:

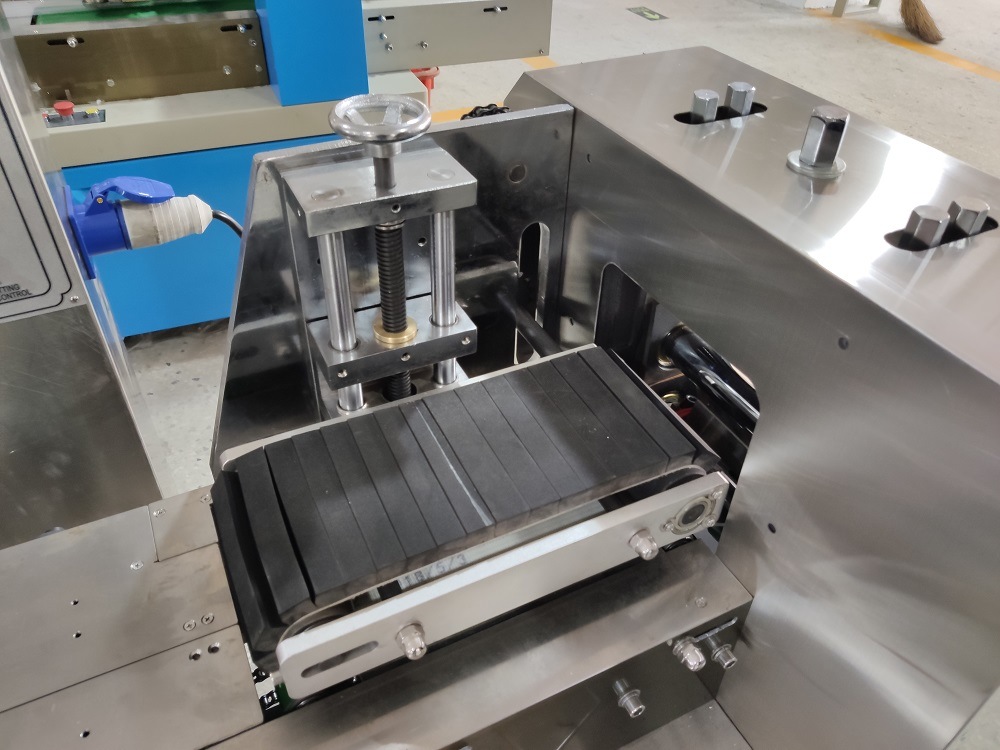

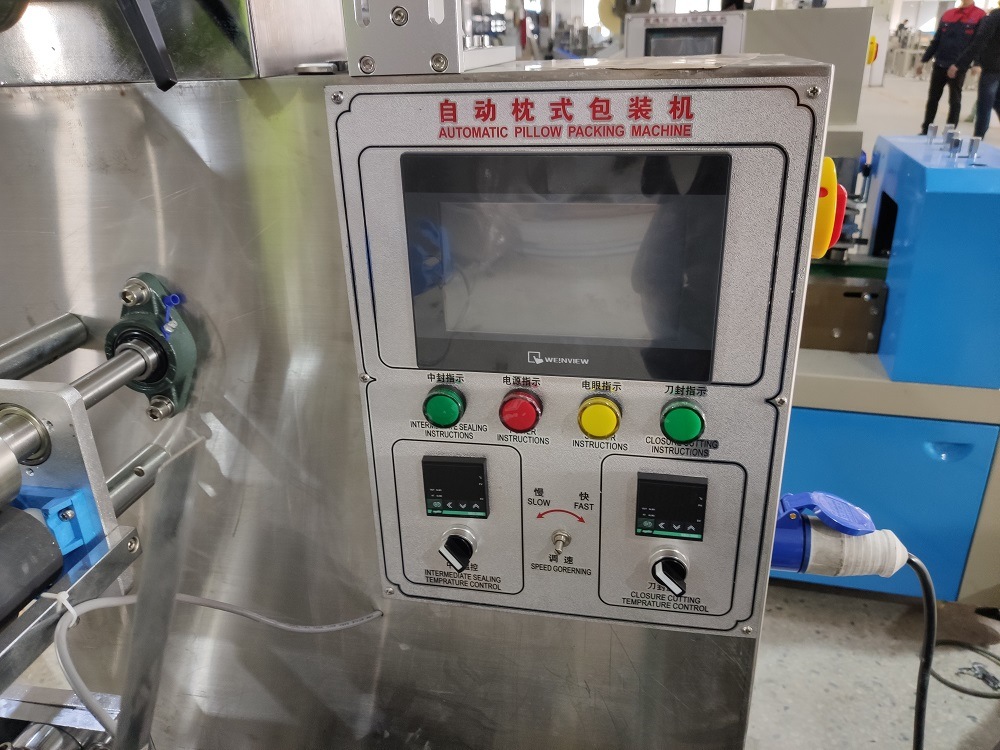

Product detail pictures:
